BEEHIVE


JAGUAR PRO ONLY

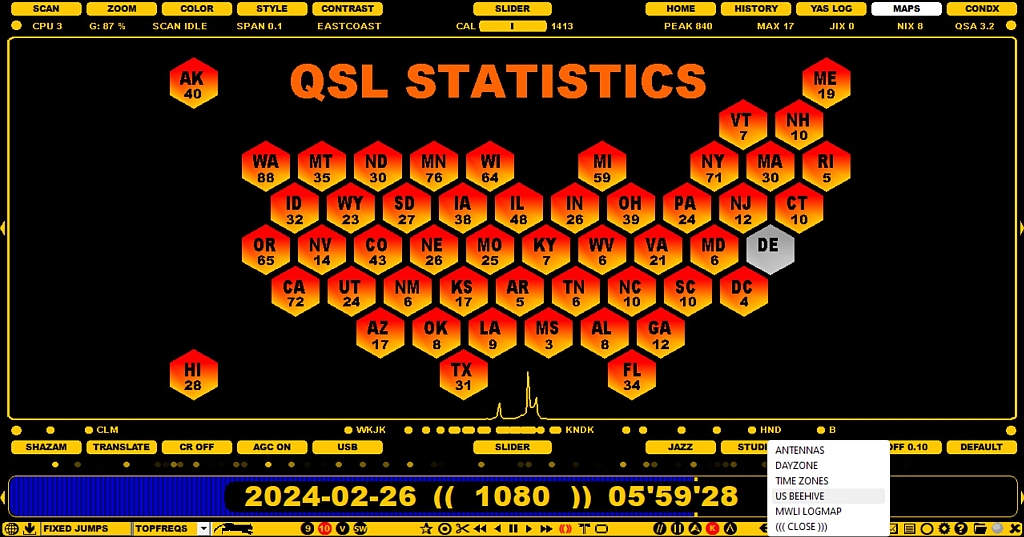

BEEHIVE is a special state-based presentation map for U.S. DX results. BEEHIVE can be used for QSLs or for identified stations.

HOW TO


KEY = ALT-M

BEEHIVE can be invoked from TOOLBAR > M > US BEEHIVE, or with ALT-M.

BEEHIVE can be closed by:

When BEEHIVE is opened, playback continues normally but several things are cleared from the screen. By default, BEEHIVE shows empty gray cells for U.S. states; you can colorize them via BEEHIVE.txt.

BEEHIVE.txt is a standard text file and it must be located in your JAGUAR folder; Notepad.exe can be used to create it.

BEEHIVE.txt can contain one "TITLE=my title" line and several "state lines". If you just want to get rid of the gray color for the states you have heard (or QSLed), just enumerate the states, add the states to BEEHIVE.txt, one state per line:

TITLE=STATES HEARD
AK
CA
CO
...

Or if you also want to define the number of stations per state (heard or QSLed), just type STATE=xx, one state per line. You can also copy-paste the following text to your BEEHIVE.txt file and overwrite the figures to match your score.

TITLE=QSL STATISTICS
AK=40
AL=8
AR=5
AZ=17
CA=72
CO=43
CT=10
DC=4
DE=0
FL=34
GA=12
HI=28
IA=38
ID=32
IL=48
IN=26
KS=17
KY=7
LA=9
MA=30
MD=6
ME=19
MI=59
MN=76
MO=25
MS=3
MT=35
NC=10
ND=30
NE=26
NH=10
NJ=12
NM=6
NV=14
NY=71
OH=39
OK=8
OR=65
PA=24
RI=5
SC=10
SD=27
TN=6
TX=31
UT=24
VA=21
VT=7
WA=88
WI=64
WV=6
WY=23
HI=28
