ZOOM

The following objects can be zoomed in JAGUAR:

• The text size in TURTLE
• The spectrum width ("SPAN") on HOME/HISTORY displays
• MAPS

HOW TO

KEY = + and -

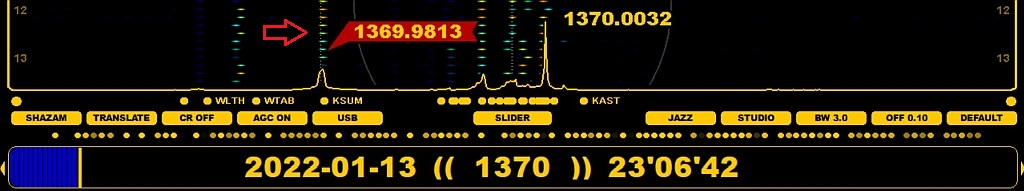

Pressing the "+" or "-" key increases or decreases the current SPAN (spectrum width) with two exceptions:

• If the mouse cursor is over the TURTLE text area, +/- increases/decreases the font size
• If the MAPS display is active, +/- zooms the map in/out

On all other displays +/- change the horizontal spectrum size, up to max 50 kHz. The smallest range (0.025 kHz) is useful when doing exact offset measurements.

In addition to +/- you can also use SLIDER > ZOOM for increasing/decreasing the display range or just move the mouse cursor to the bottom area of SPECTOR (the red offset flag appears to cursor) and scroll using the mouse wheel and/or left/right arrow keys.
