PATTERNS

JAGUAR PRO ONLY

The pattern maps of the U.S. and CAN stations can be supported natively in JAGUAR. Two pattern map modes are available:

• Show day/night pattern for the selected station
• Show day/night patterns for all the stations on the current frequency

The patterns have a strong white shading if you have logged/QSLed the station in question. Logging/QSLing information is based on P-TAGS in CATBOOK. See the P-TAGS help for details). Otherwise, the patterns are displayed without the white shading.

HOW TO

KEY = ALT-N

The use of PATTERNS requires that an additional pattern data package has been installed.

• Download the pattern data (of 40 MB in size, zipped) from TOOLBAR > WWW > DOWNLOAD > OPTIONAL FILES > PATTERNS.zip
• Unzip the data files into the folder named PATTERNS in your JAGUAR installation folder

Now you can rotate the pattern map modes by pressing ALT-N in the following order:

"ALL PATTERNS (DAY)" > "ALL PATTERNS (NIGHT)" > "SHOW PATTERN (DAY)" > "SHOW PATTERN (NIGHT)" > "PATTERNS OFF"

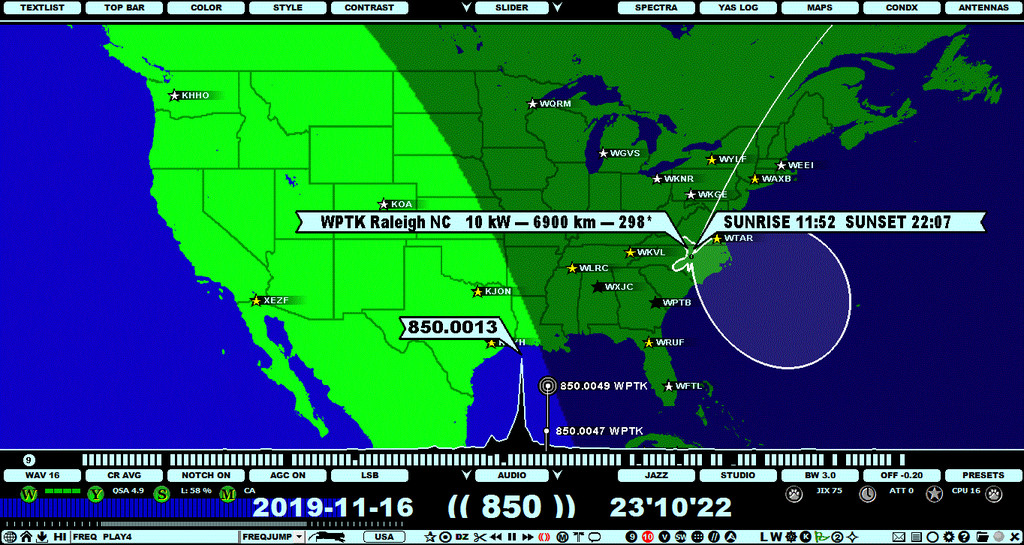

When "SHOW PATTERN" is selected, the pattern will be shown for the selected station when you move the mouse over the station star.

Instead of ALT-N, you can also use TOOLBAR > USA > The 1. STAR ("PATTERNS") to rotate the pattern modes.

Examples of "ALL PATTERNS (DAY)" and "ALL PATTERNS (NIGHT)":

ALL PATTERNS (DAY)

ALL PATTERNS (NIGHT)
